SEHREEFS186 – Servo 900LP SMART brushless Low Profile 10–17 V Direct Power – REEFS RC

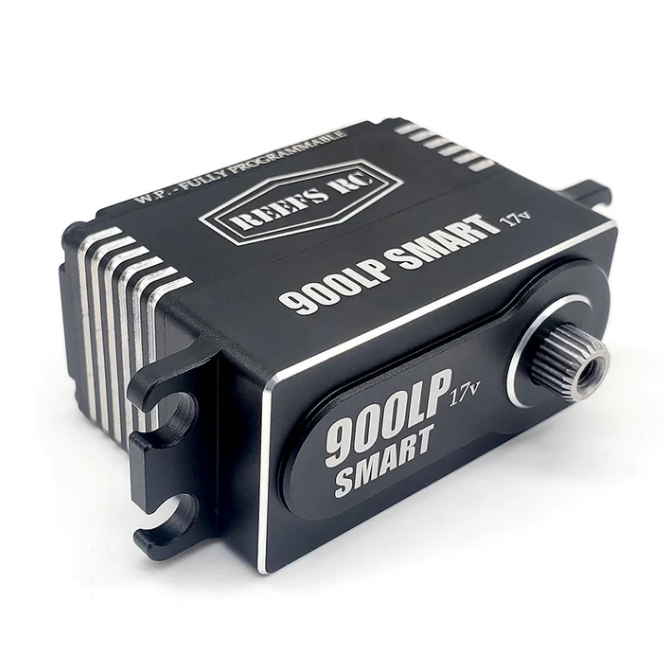

The REEFS RC 900LP SMART brushless Direct Power servo combines a low-profile design with a CNC-machined aluminum housing. It is intended for compatible setups requiring high steering torque in a confined space. Its settings can be customized with the REEFS LINK module, sold separately.

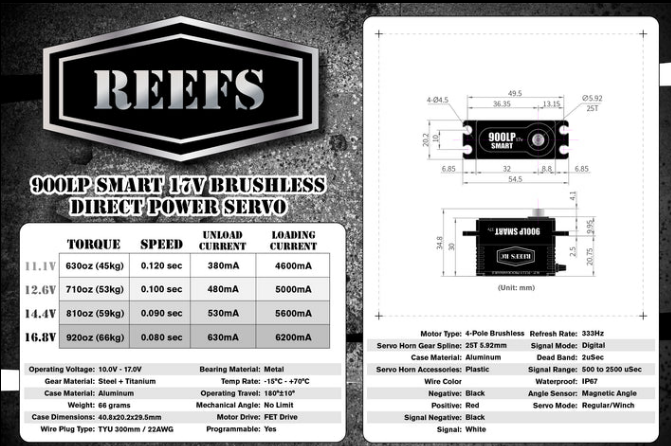

Technical specifications

• 4-pole brushless motor.
• Direct power supply: 10 to 17 V.
• Rated torque: 710 oz·in at 12.6 V; 810 oz·in at 14.4 V; 920 oz·in at 16.8 V.
• Speed: 0.10 s/60° at 12.6 V; 0.09 s/60° at 14.4 V; 0.08 s/60° at 16.8 V.
• CNC-machined aluminum housing; steel gears.
• 25T output; 2 ball bearings; magnetic sensor.
• PWM control; 2 µs deadband.
• Dimensions: 40.8 × 20.2 × 29.5 mm.
• Weight: 66 g.
• Rated protection rating: IP67, with 7 sealing points.
• Rated load current: 5.8 A at 12.6 V; 6.5 A at 14.4 V; 7.5 A at 16.8 V.
• REEFS LINK programming and configurable winch function.

Compatibility

Check the housing dimensions, mountings, 25T linkage, and electrical requirements of your setup. The low-profile design or gear teeth alone do not guarantee compatibility.

Usage tips

Direct power supply of 10 to 17 V: follow the manufacturer's wiring diagram. Do not assume that the receiver accepts this voltage.

The source sheet recommendations regarding a battery with a real capacity greater than 1200 mAh, a discharge rate of at least 100C, and the advice against use with Rhino systems remain to be confirmed in the REEFS RC documentation before installation.

Box contents

• 1 REEFS RC 900LP SMART brushless Direct Power servo.

REEFS LINK module sold separately.
