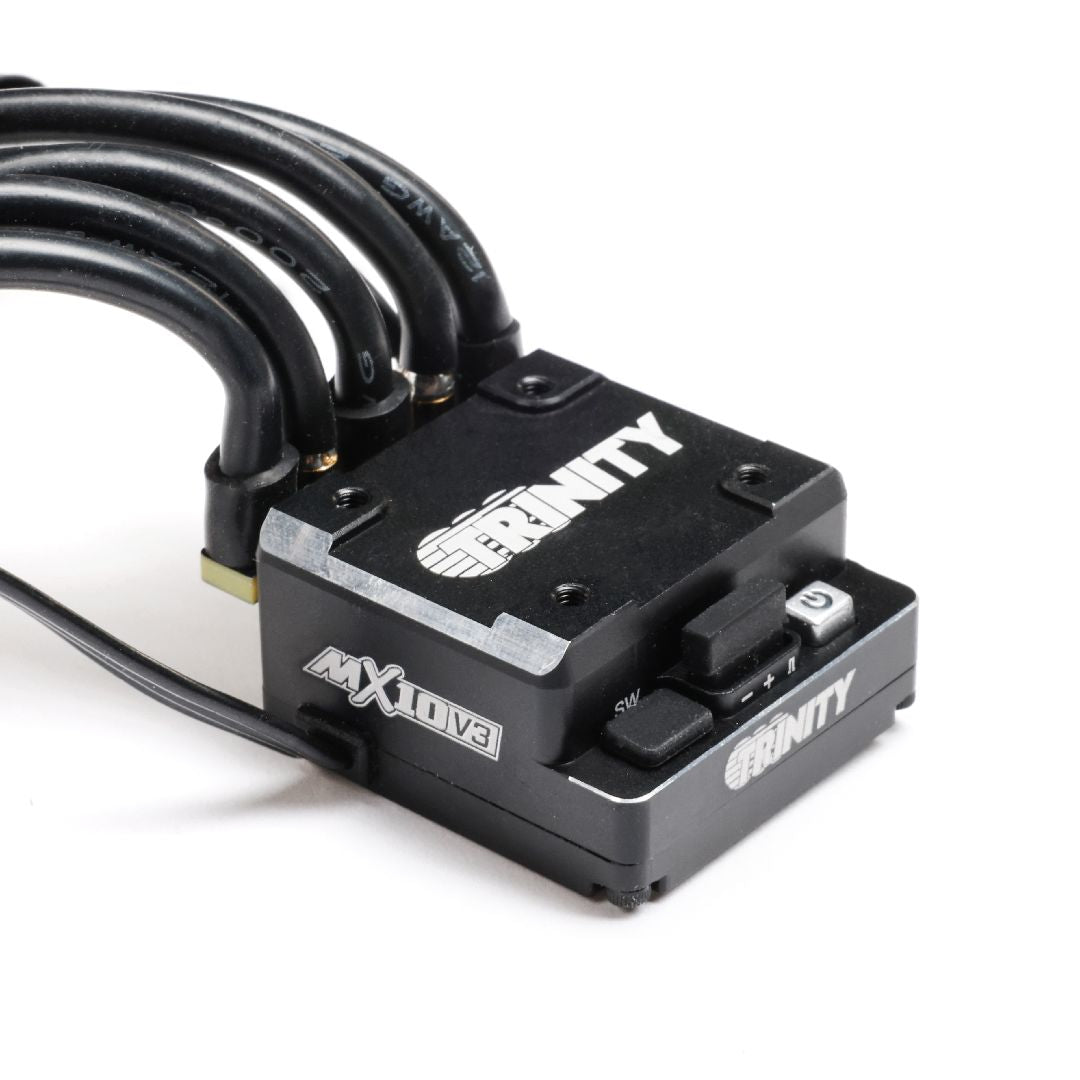

TRI-1081 ESC brushless MX10 Gen3 Spec/Blinky 1/10

Key Features

• High-performance ESC designed for Stock/Blinky 1/10 classes
• Zero Timing (Blinky) mode compliant with competition regulations
• Continuous power 100A with peak up to 500A
• 32-bit microprocessor for ultra-precise power management
• Smooth and consistent throttle response lap after lap
• Machined aluminum casing for optimal heat dissipation
• Fan included for effective cooling
• High flexibility 13AWG wires for maximum current transfer
• Compact and lightweight for easy installation in 1/10 chassis
• Compatible with OTA module and Trinity LCD programming box for advanced programming

Specifications

• Type: Sensored brushless ESC
• Scale: 1/10
• Voltage: 2S LiPo (7.4V)
• Continuous current: 100A
• Peak current: 500A
• BEC: 5V / 7.4V adjustable
• Dimensions: ~30 x 35 x 34 mm
• Weight: ~93 g
• Programmable: yes
• Blinky Mode: yes

Compatibility

• Compatible with 1/10 electric RC vehicles
• Compatible with sensored brushless motors (≥10.5T)
• Compatible with Stock / Spec racing classes
• Compatible with Trinity OTA (TRI-2021) and LCD (TRI-2020) modules
